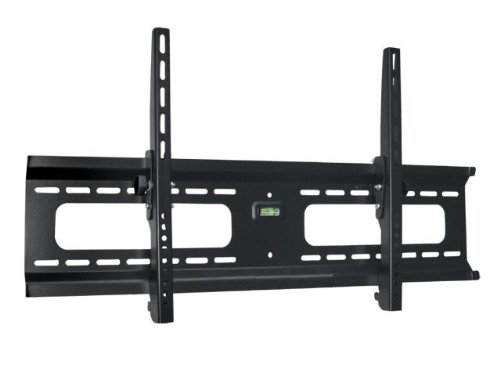

I just installed this TV mount on my 50′ Samsung PN50C550 weighing 83lbs. The mount I got said it was good for 30-62″ HDTV’s. Looks just like what is pictured. The instructions were pretty easy to follow and the parts are labeled. There is also a picture of each part in the instructions in case you mix them up. This structure is very sturdy. It was able to support my weight (130lbs). The metal is not flimsy and will not easily bend. The built in level is not really accurate so use your own level. FYI Hanging this mount and hanging your TV will be a 2-3 person job. Instructions are mostly in metric. There is just enough room behind so you won’t need to buy the hdmi elbow connectors. I am very happy with the look and stability of this mount!
Some installation tips for wood studs:
Tools needed:
3/16″ drill bit
Tape measure
Stud finder
Painters tape
13mm wrench or socket wrench
Level
Phillips screwdriver
Find the center of where you want to Hang your TV. (When marking the vertical center put a small piece of painters tape below where the TV will hang so when you go to hang the TV you know where the center is.) Then locate the nearest studs on the left and right of the center. Use the stud finder and mark the center of each stud.
Have a friend hold up the mount frame and use a level (not the built in one) to ensure it is straight. Your center mark should be around the center of the mount frame. If you have a bigger TV you have more room to adjust left to right if you need to. Mark the 4 mount holes (left right top bottom) so they are directly over the stud center marks.
Next you need to drill the holes into the studs. The only complaint I have is the measurements are in metric and the instructions do not list the conversion. To install this into wood studs it asks you to use a 5 mm drill bit and make a 50mm hole. I used a 3/16″ drill bit and drilled a 2 inch deep hole. A trick to make all your holes the same depth … put a piece of blue painters tape around the drill bit just above the 2 inch mark. Then just drill each to the mark.
Have your friend hold up the frame again. Then install the bolts + washer into the drilled holes. Do not over tighten!
Determine which screws to use on your tv. For my Samsung TV I had to put the square washer on the backside of the mount arms because there were two screws sticking out of the back of the TV that were in the way. In the case the back of your tv is not even they provide plastic spacers you could use as well. Gently tighten the Tilt adjusters so they aren’t too loose.
Once the mount arms are attached to the TV. You can hang it on the mount frame… Get your friend again and have them help you lift the TV onto the mount frame. If someone else is available have them plug in the cables before you hang it on the wall. Then reach underneath the TV and tighten the safety screws. It’s easier to do this if you gently tilt the TV up first.
Yippe! Your TV is now ready to watch!
Note: Deal will expire very soon, please double check the deal carefully before you purchase!
Purchase OLLO MOUNTS: 42-60″ Tilt / Tilting Flat Screen Universal TV Wall Mount *HDMI CABLE* *SUPER SAVER* LCD, Plasma, LED, Model (BT) with Low Price. Order It Today Before Price Up with Trust.
Products by : OLLO
Rating :
Price on Sep 01, 2010 09:30:35 : $149.99
Click buy Lowerest price
: $25.99
Availability : Usually ships in 24 hours
Buy Cheap OLLO MOUNTS: 42-60″ Tilt / Tilting Flat Screen Universal TV Wall Mount *HDMI CABLE* *SUPER SAVER* LCD, Plasma, LED, Model (BT) for Sale Features :
- FREE HIGH SPEED HDMI CABLE INCLUDED IN THE BOX
- FREE MOUNTING HARDWARE
- NO ASSEMBLY REQUIRED
- +/-15º TILT
- VESA MOUNTING HOLES: Up To 800 X 400 (31.5″ HORIZONTAL X 15.75″ VERTICAL)
